GPON customer-premises equipment (CPE) with WiFi6 support



UF-WIFI is a Gigabit Passive Optical Network CPE with built-in WiFi and multiple VLAN-aware switch ports.

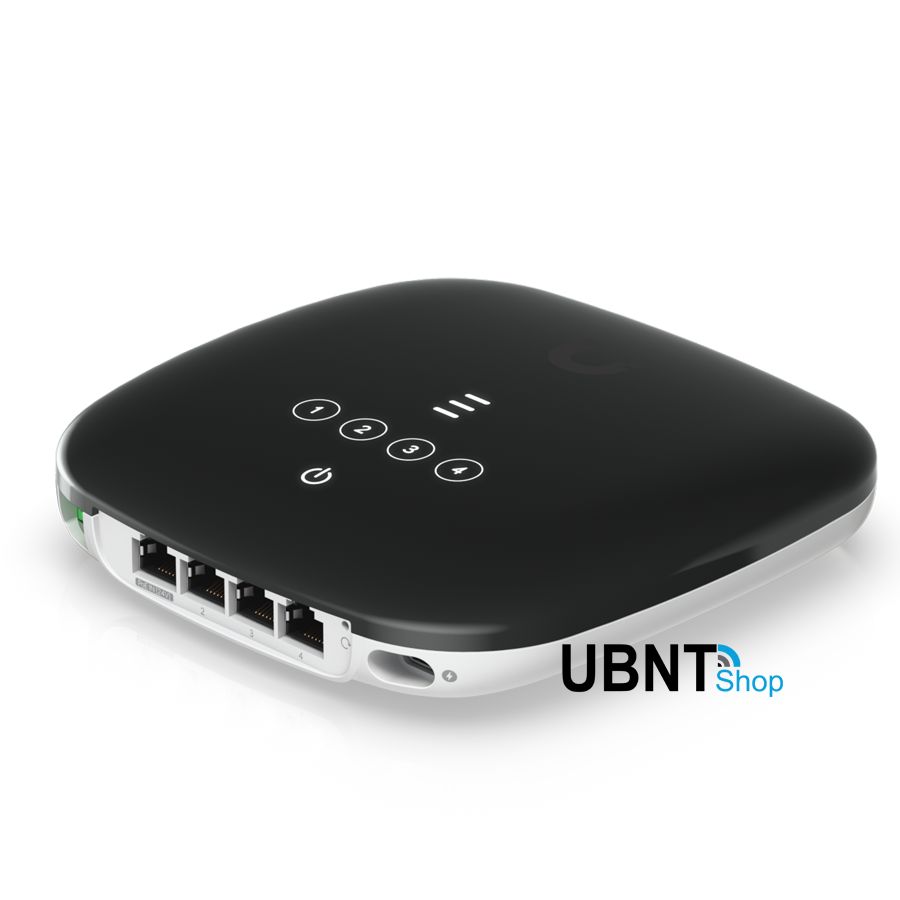

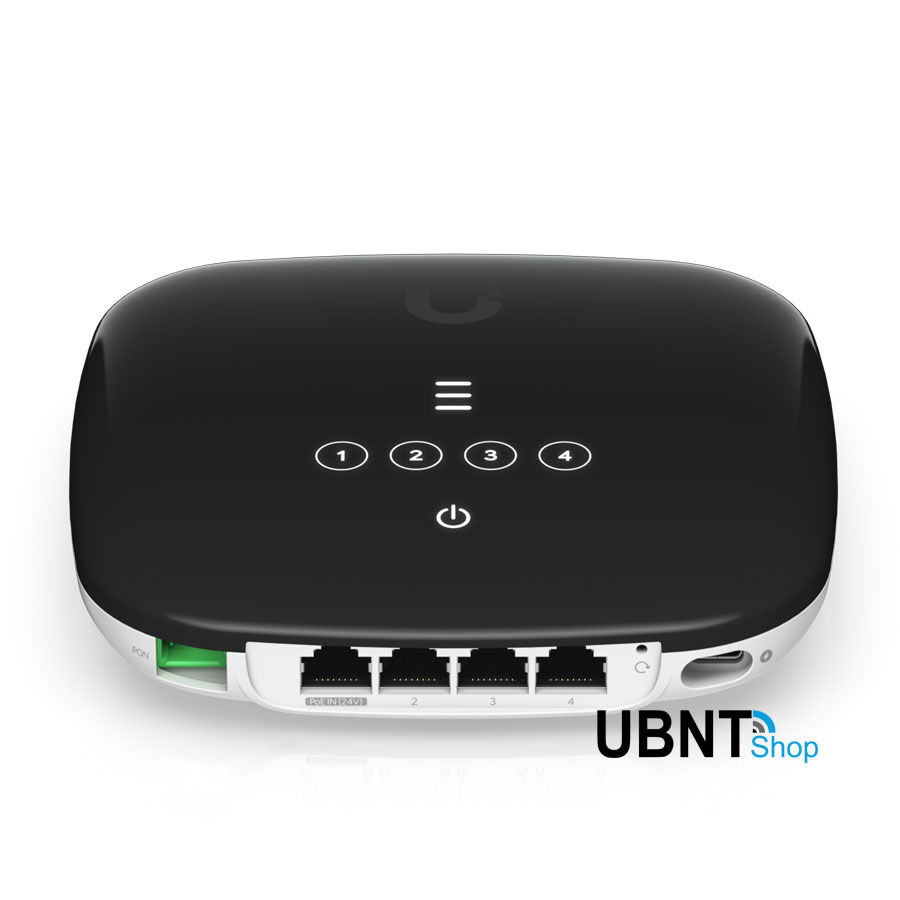

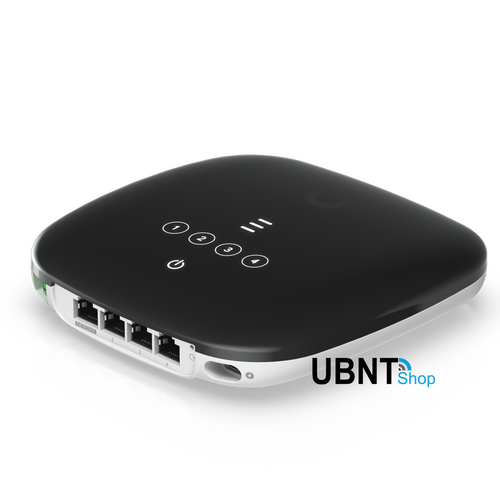

Sporting a sleek industrial design, the U Fiber WiFi is a robust, high‑performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi.

Features:

  • 2x2, high-efficiency WiFi 6

  • 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate

  • 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate

  • 2.4 Gbps max downstream line rate

  • 1.2 Gbps max upstream line rate

  • Establishes GPON links up to 20 km

  • Powerful Layer 2/3 management features

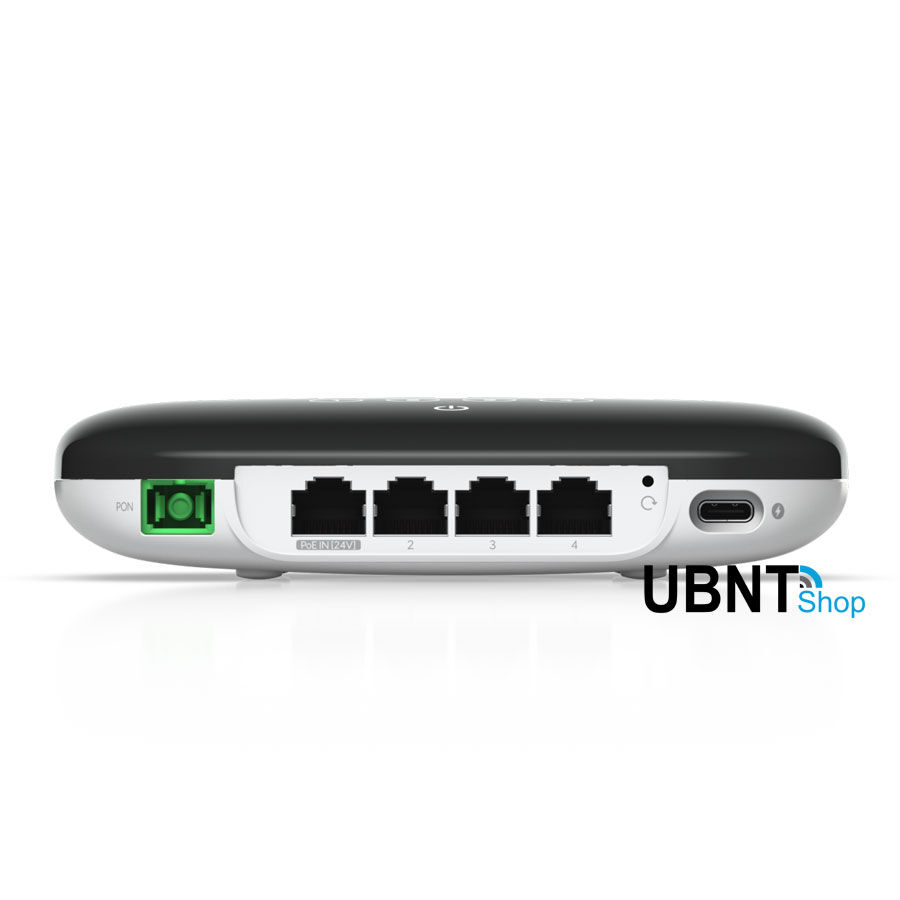

  • (1) GPON WAN port

  • (4) GbE RJ45 LAN ports

  • Powered with the included power adapter or passive PoE

  • Internal WiFi 6 (802.11ax) antennas

Note: This device is only compatible with the UFiber OLT. It cannot be used with third-party OLTs.

(UF-WIFI6)

GPON customer-premises equipment (CPE) with WiFi6 support



Pack Includes:

  • 1 x Ubiquiti Fiber WiFi6 GPON CPE

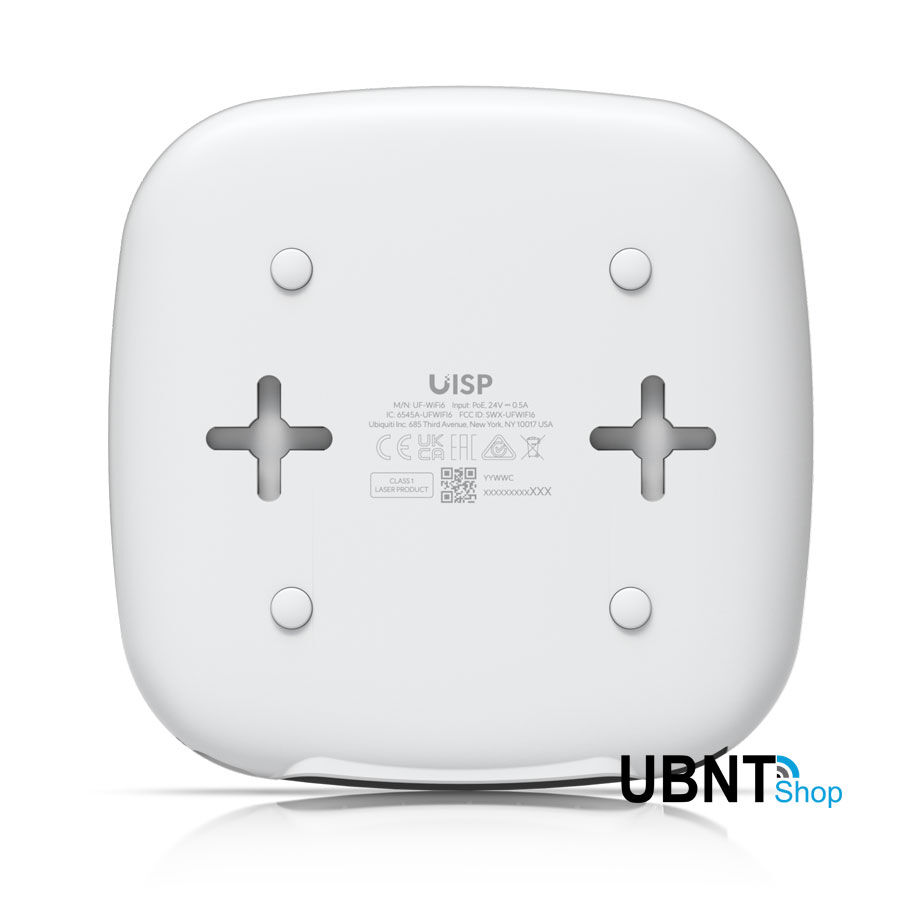

  • 4 x Screws
  • 4 x Screw Anchors
  • 1 x Power Adapter (24V, 0.5A)
  • Quick Start Guide

GPON customer-premises equipment (CPE) with WiFi6 support - Specifications

Mechanical
Dimensions 140.8 x 141.5 x 31.7 mm (5.5 x 5.6 x 1.3")
Weight 415 g (14.6 oz)
Enclosure material UV-stabilized polycarbonate (PC110U)
Hardware
Networking interface (1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports

WiFi 802.11ax 5/2.4 GHz channels
Management interface Ethernet In-Band
PON
Power method USB-C 5V DC, 3A
24V passive PoE, 0.5A
Power supply 5V DC, 3A power adapter, 1.5 m cord (included)
Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range 10–30V DC (passive PoE)
5V DC (adapter)
Max. power consumption 11W
Total non-blocking line rate
Downstream
Upstream
2.488 Gbps
1.244 Gbps
Normal range of optical module
TX
RX
0.5 to 5 dBm
-8 to -28 dBm
Max. WiFi TX power
2.4 GHz
5 GHz
20 dBm
20 dBm
MIMO
2.4 GHz
5 GHz
2 x 2
2 x 2
Max. WiFi radio rate
2.4 GHz
5 GHz
300 Mbps
1.2 Gbps
Antenna gain
2.4 GHz
5 GHz
1 dBi
3 dBi
Button (1) Factory reset
Ambient operating temperature -15 to 45° C (5 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE

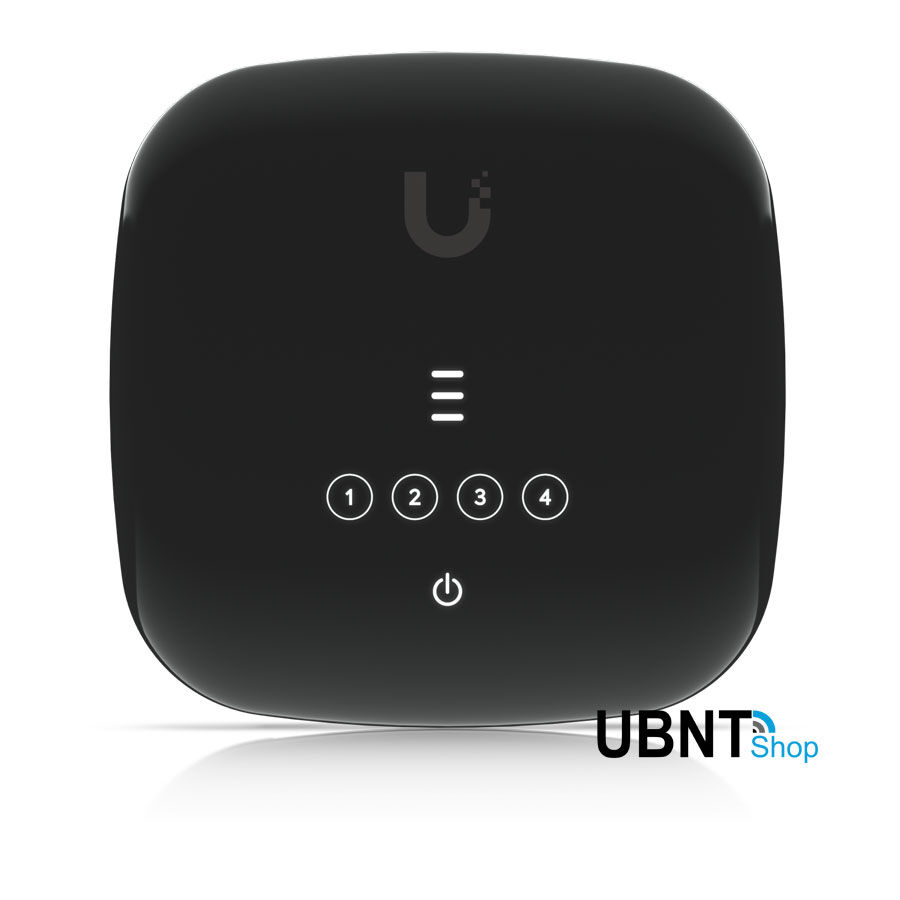

LEDs
PON status (3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x orange + 2x white: signal too strong (>= -8 db)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority
Ethernet Steady white: link up
Blinking white: activity
OFF: link down
Power White: ON
Software
Mode ONU/ONT layer 2/3 Ethernet switch
Services Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
Utilities Dashboard, monitoring, alarms, and logs
Other Remote reset, remote reboot, remote firmware upgrade, VLAN support
Security GEM Port Encryption
Ubiquiti specific features UISP Mobile App
WiFi standards 802.11 b/g/n/ac/ax
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
Fiber
Operating wavelength
TX
RX
1310 nm
1490 nm
Line code Scrambled NRZ
Optical interface nominal bit rate
Downstream
Upstream
2488.32 Mbit/s
1244.16 Mbit/s
Physical reach 20 km
Supported Data Rates
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6) 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)

Shipping Specifications

SKU UF-WIFI6
Model # UF-WIFI6
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.030m
Shipping Length 0.080m
Shipping Cubic 0.000192000m3
Unit Of Measure ea
